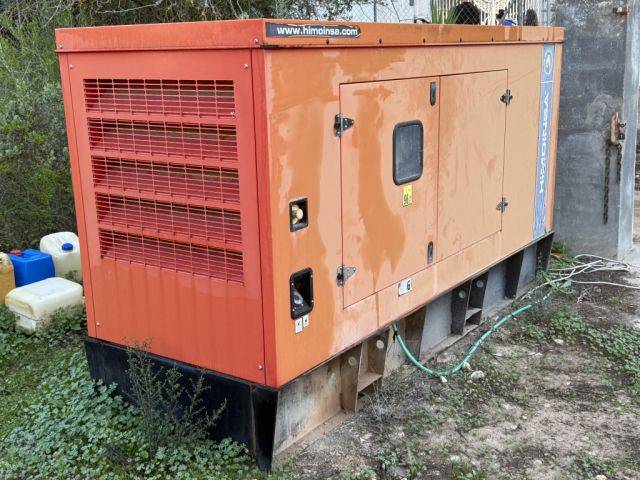

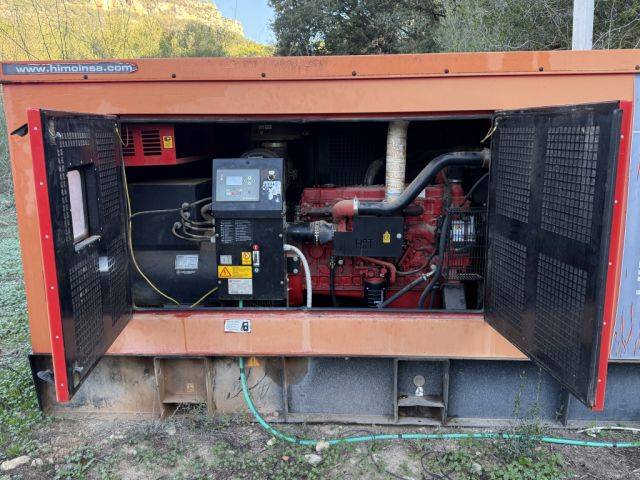

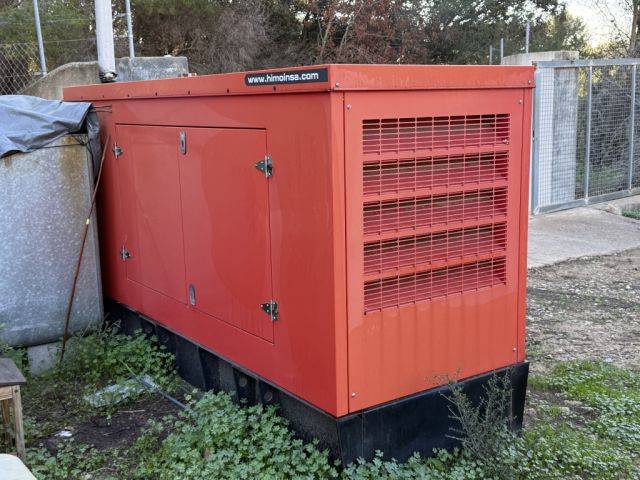

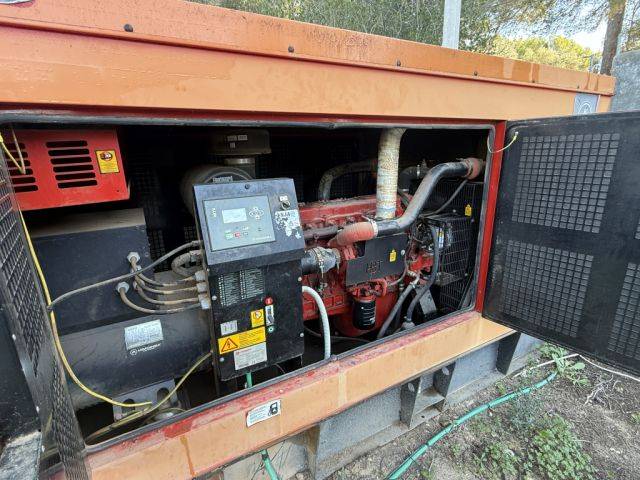

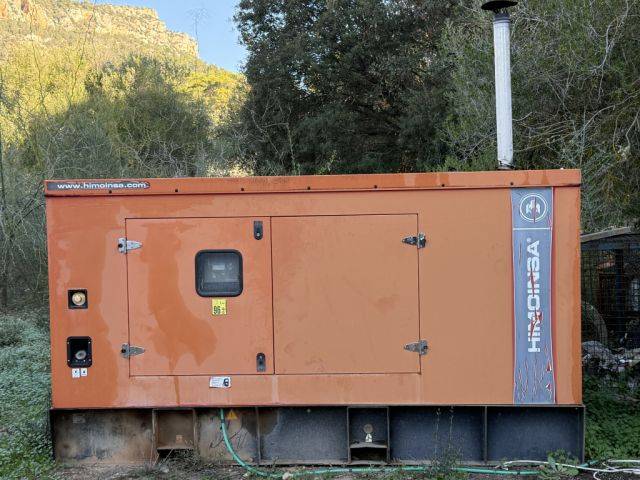

Himoinsa HHW-130 T5 110 kW emergency power generator

Himoinsa HHW-130 T5 110 kW emergency power generator

Himoinsa generator
Location: Mallorca Llucmajor

Inspection recently performed
Runs perfectly
Three-phase
Frequency 50 Hz

Rated power: 110 kW PRP; 121.4 kW standby

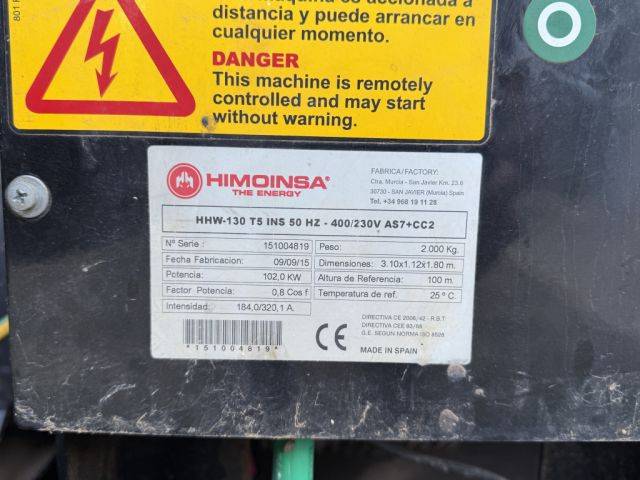

Manufacturer: HIMOINSA Model: HMA6TAG1
Engine type: Diesel four-stroke Injection type:
Direct Air intake type:
With turbocharger and charge air cooling Cylinders, number and arrangement: 6 -
Bore x stroke: 104 x 113 mm
Total displacement: 5.76 L
Cooling system: Liquid (water + 50% glycol)
Engine oil specifications: API CF4, SAE 15W40
Compression ratio: 17.5:1
Fuel consumption standby operation: 31.5 l/h
Fuel consumption 100% PRP:
27.3 l/h Fuel consumption 75% PRP:
20.5 l/h Fuel consumption 50% PRP:
14.1 l/h Oil consumption at full load:
0.15% of fuel consumption
Total oil capacity (including hoses, filter)
14 L Maximum oil capacity: 30 L
Governor type: Electronic
Air filter type: Dry
Inner diameter exhaust outlet pipe: 80 mm
Diesel engine four-stroke
Water-cooled Electric starter 12V Radiator with forced fan Separator filter (stand not visible)
Electronic control
Dry air filter Protective guards for hot parts Protective guards for moving parts
